One of the most quality armoured vehicles providing companies in Kerala, India.

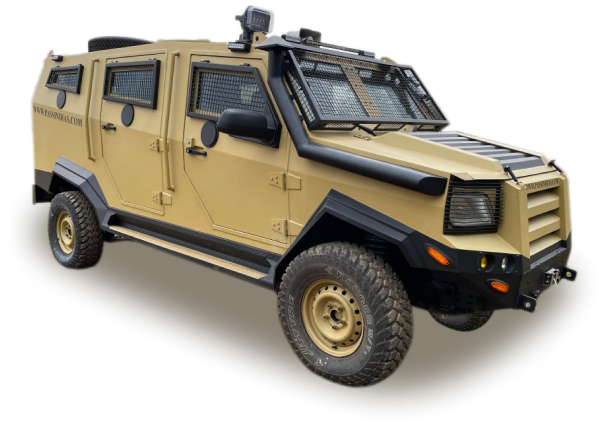

PERFECT ARMOURING & SECURITY SOLUTION (PASS) is one of the most quality armoured vehicles providing companies in Kerala, India. And we are providing the services ranging from the original concept design and engineering through to the final product.
All components are designed and purchased with client safety and vehicle performance always first in mind. By the way of continuous observations and the research against the latest customer demands we can offer best solution in a flexible, cost effective and in a time efficient manner. With the help of highly skilled employees/workers we can assure the quality to customer in a trustful way. As we have many years experienced superior staffs in this field, we can minimize the errors in all the departments.
Like all other companies in this field, Our vision is to be world's most customer centric company; to build a place where people can come to find more protected vehicles to buy
By 2024, PASS will be a Multi-National Company which provide highly innovative and quality oriented armoured vehicles all over the world.
Our purpose is to protect people throughout the world by supplying quality oriented armored vehicles. Second, is to create value for our clients, owners, employees, and community. Third, we strive to lead our industry through product innovation, unparalleled protection, quality finishing, and superior customer.
In each and every processes in production we conduct frequent inspection to reach the optimum level of confidence for any given vehicle and environment. Normally we are offering from the protection level B4 to B7 level according to the customer needs based on the armouring standards like NIJ and CEN standard. The production of these vehicles take place under strict supervision of the professionals and by using high quality tested ballistic materials. Vehicle's armor plates are stitch/fully welded using high intensity MIG welders (based on customer requirement).
The above process ensures the structural integrity is uncompromised by thermal and chemical variations of the material. Ballistic steel interior frame provides overlap and back up protection for the large surface principal impact are as such as the doors and windows. Some OEM vehicle features / equipment may be removed or disabled to accommodate for the installation of the armoring materials and other equipment required a sapart of the armoring. Five side armoring of passenger compartment and additional body (roof and verticals) to provide different level protection (basis of customer requirement) at zero degree obliquity angles.
There are three levels; each is protected by different systems of armoring. Of course, each level protects against weapons mentioned in lower levels. NIJ standards requires stopping 3 shots at each level and those shots must be 4.72 inches or 120 mm triangle from each other and 2 inches or 50 mm from the edge in order to pass the test. The NIJ IV level requires stopping a single shot only.
| Level | Weapon | Size | Bullet Mass(g) | Bullet Type | Speed(m/s) | Shots |
|---|---|---|---|---|---|---|
| IIIA | Hand gun | 9 mm 0.357 Magnum 0.44 Magnum | 8.0 10.2 15.6 | FMJ/S JSP SWC | 425 426 425 | 5 |
| III | M16 Rifle AK-47 | 7.62x39 5.56x45 7.62x51 | 9.7 4.0 9.5 | FMJ/S FMJ/S FMJ/S | 732 950 838 | 5 |
| IV | Rifle | 7.62x51 AP | 9.5 | FMJ/HC | 869 | 1 |
STANAG 4569 is a NATO Standardization Agreement covering the standards for the "Protection Levels for Occupants of Logistic and Light Armored Vehicles”
| Protection Level | Threat | Velocity (m/s) | Range(m) |
|---|---|---|---|
| STANAG Level 1 | 5,56x45 SS109 5,56x45 M193 7,62x51 M80 | 900±20 937±20 833±20 | 30 |
| STANAG Level 2 | 7,62x39 API BZ | 695±20 | 30 |
There are four levels within this normalization. Each level requires stopping 3 shots at corners of 120 mm triangle to pass.
| Level | Weapon | Size | Bullet Mass(g) | Bullet Type | Speed(m/s) | Shots |
|---|---|---|---|---|---|---|
| B4 | Hand gun | 9x19 mm 0.357 Magnum 0.44 Magnum | 8.0 10.2 15.6 | FMJ/SC FMJ/SC FMJ/FN | 400 430 440 | 3 |
| B5 | M16 Rifle AK-47 | 7.62x39 5.56x45 | 9.7 4.0 | FMJ/SC FMJ/SC | 722 950 | 3 |
| B6 | Rifle | 7.62x51 | 9.5 | FMJ/HC | 869 | 3 |
| B7 | Rifle | 7.62x51 AP | 9.5 | FMJ/HC | 869 | 3 |
| FMJ | Full metal jacket |
| FMJ/S | Full metal jacket |
| FMJ/H | Full metal jacket |
| FMJ/F | Full metal jacket flat nose |
| AP | Armored piercing |
| SWC | Steel wad cutter |
| JSP | Jacket soft point |
